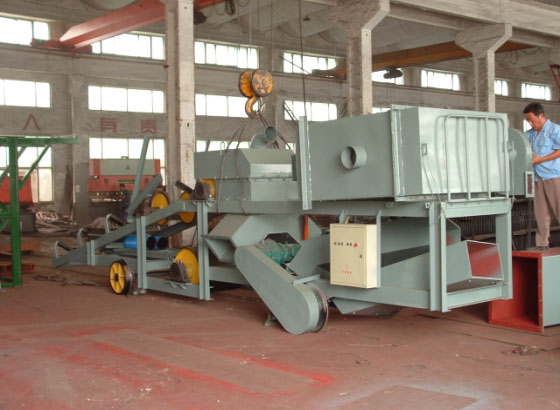

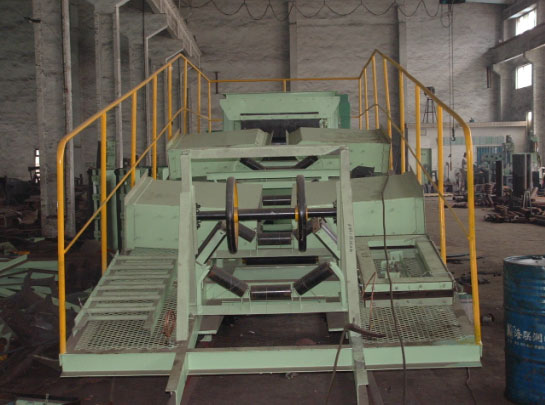

The unloader is a high-quality product optimized and improved by our technicians on the basis of digesting advanced technology and experience at home and abroad, including electric double-sided plow unloader, electric single-sided plow unloader, heavy-duty unloader, etc; For large capacity ore materials, a heavy-duty unloader is required. There are two kinds of unloaders: two-way and three-way funnels. The three-way funnels can be used for unloading on both sides and in the middle. The two-way funnels can only be unloaded on both sides at the same time. The unloading car has a bandwidth of B = 500 to B = 2200, and can also be designed and processed according to the requirements of users.

Structural features:

The main transmission device has the advantages of simple structure, high efficiency, convenient adjustment and balanced operation.

The power supply is reliable and not limited by the transportation distance.

The unloading trolley runs stably, and the stop position is accurate and reliable.

The reversing drum adopts high-strength type, which can bear large belt tension.

The frame body has reasonable structure and good strength and rigidity.

Effectively reduce dust pollution and prolong the service life of the equipment.

The maintenance is simple and convenient.

The light dump truck is suitable for materials with bulk density < 1600kg / m3. A three-way chute is installed under the funnel, which has three unloading modes: left, right and straight. The applicable bandwidth is 500 ~ 1400mm.

The heavy-duty unloader is suitable for materials with bulk density ≥ 1600kg / m3. The double-sided unloading truck can only discharge materials on both sides at the same time. There are two types of single side dump trucks: left side and right side. The applicable bandwidth of heavy unloading truck is 500 ~ 1400mm.
